Splunk

  • log analytics tool to gather, analyze and visualize data
  • not originally intended as a SIEM tool, it is used for security monitoring and business analytics
  • splunk deployments contain sensitive data
  • CVE-2018-11409 & CVE-2011-4642 - https://www.cvedetails.com/vulnerability-list/vendor_id-10963/Splunk.html
  • https://splunkbase.splunk.com/

Discovery

  • usually seen on internal pentests
  • Splunk server runs on port 8000 & 8089 - Splunkd httpd
  • runs as ROOT on Linux and SYSTEM on Windows
  • eg:
    • Let's imagine that we uncover a forgotten instance of Splunk in our Aquatone report that has since automatically converted to the free version, which does not require authentication. Since we have yet to gain a foothold in the internal network, let's focus our attention on Splunk and see if we can turn this access into RCE.
  • main avenue of attack: weak or null authentication
    • older version have admin:changeme
    • latest version sets credentials during the installation process.

Enum

  • trial version is converted to free in 60 days
  • imagine a sysadmin got the trial version and forgot about it
    • after 60 days, itll turn to the free version that does not have authentication.
  • Manually go to the pages:
    • https://10.129.201.50:8000/en-US/app/launcher/home
    • https://10.129.201.50:8000/en-US/account/login?return_to=%2Fen-US%2F
  • might reveal the version and take you to the home page

Attacking

  • we can gain remote code execution on Splunk by creating a custom application to run Python, Batch, Bash, or PowerShell scripts
  • target is a windows server as we saw IIS, 445
  • For Network tools, look for notifications - these can allow scripts, cmd execution.
  • Splunk comes with Python installed
  • for our example: we can use a python or powershell script to get RCE

Abusing Built-in functionality

  • use this splunk package - https://github.com/0xjpuff/reverse_shell_splunk
    • the bin directory contains python and ps examples

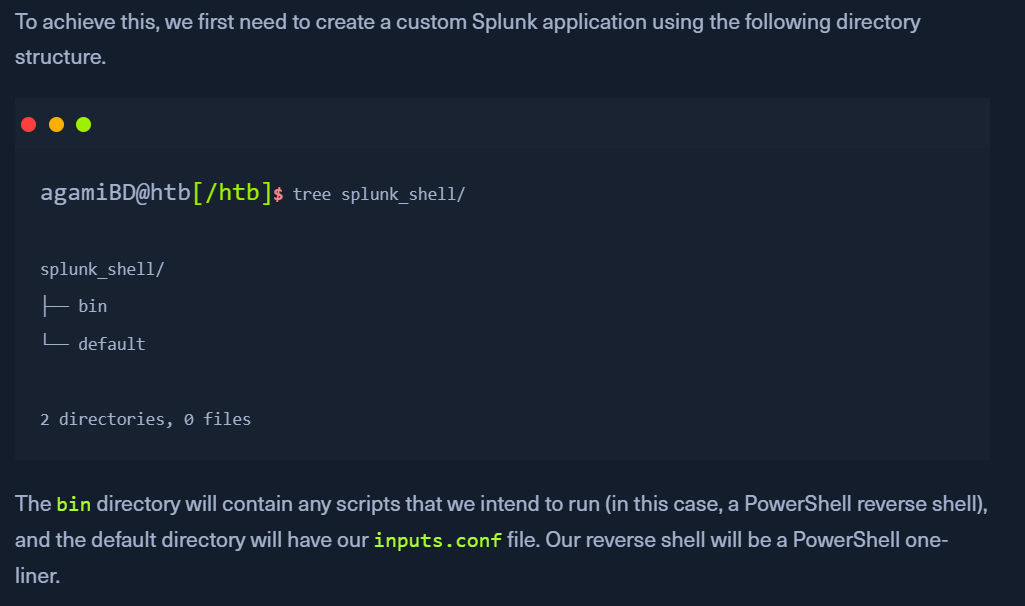

  • Create a custom splunk application as in above image
    • copy the rev.py, run.ps1 , run.bat file to /bin directory
      • update the rev.py run.ps1 files to include the attacker ip:port
    • add the following to inputs.conf in /default -https://docs.splunk.com/Documentation/Splunk/latest/Admin/Inputsconf
      [script://./bin/rev.py]
disabled = 0
interval = 10
sourcetype = shell

[script://.\bin\run.bat]
disabled = 0
sourcetype = shell
interval = 10
  • we need the .bat file, which will run when the application is deployed and execute the PowerShell one-liner.
  • tar -cvzf updater.tar.gz splunk_shell/
    • create a tarball or a .spl file
  • In the Splunk console, Click on Install app from file
  • Start a netcat listener.
  • Upload the application on the Splunk Console

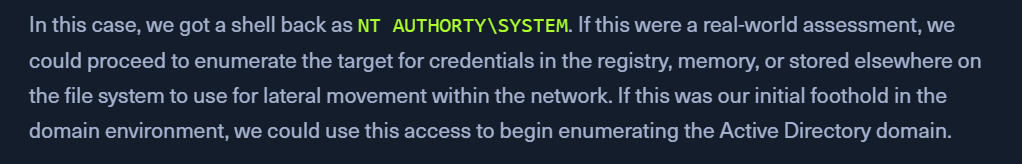

  • we should get a reverse shell back
  • if a windows host, run.ps1 will be used. if a linux host, rev.py will be used.

  • NOTE: If the compromised Splunk host is a deployment server, it will likely be possible to achieve RCE on any hosts with Universal Forwarders installed on them. To push a reverse shell out to other hosts, the application must be placed in the $SPLUNK_HOME/etc/deployment-apps directory on the compromised host. In a Windows-heavy environment, we will need to create an application using a PowerShell reverse shell since the Universal forwarders do not install with Python like the Splunk server.
