  • Port FWDing allows us to redirect a commx request from one port to another
  • Uses a TCP layer primarily
  • SOCKS - Socket Secure
    • Internet protocol that exchanges network packets between a client and a server through a proxy server
    • SOCKS server proxies TCP connections to an arbitrary IP and provides means to fwd UDP packets
    • SOCKS5 allows authentication
  • Effective in bypassing firewalls and using existing services on the compromised host to pivot to other networks

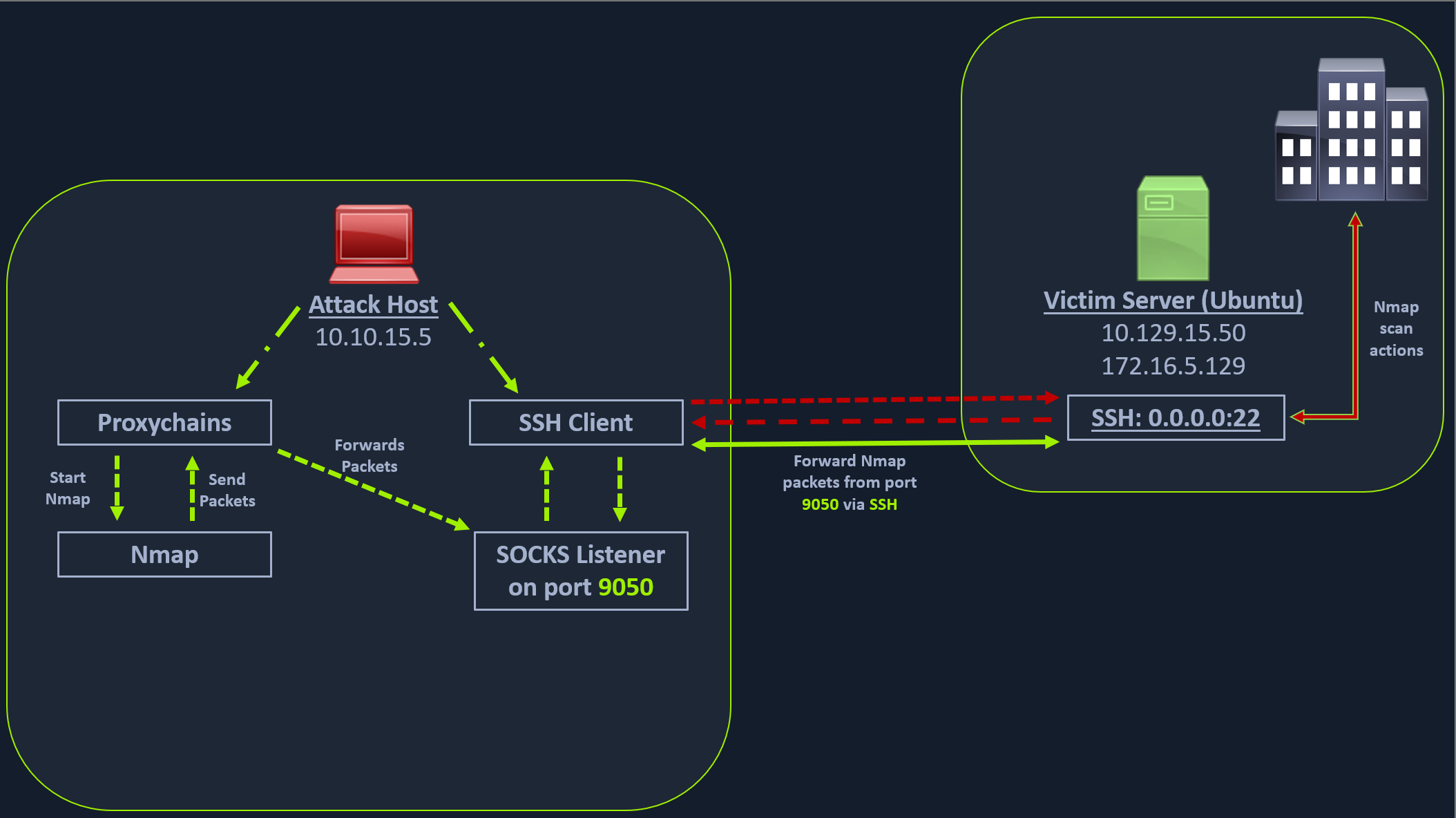

Setting up to Pivot

Scenario - We do not have any port running on localhost - But now, the Ubuntu server is connected to another (internal) network that is not accessible via our PWNBox - To scan a range of IPs of the internal network via out PWNBox, we need to perform dynamic port forwarding and pivot out network packets via the Ubuntu server.

How? - SSH tunneling over SOCKS proxy - Start a SOCKS listener on the pwnbox and configure SSH to forward the traffic via SSH to the internal network after connecting to the pivot - firewall evasion - allow an external entity to bypass the firewall and access a service within the firewalled environment. - SOCKS client initiates connection with the SOCKS server (pwnbox) who wants to access a service on the client-side - Once the connection is established, network traffic can be routed thru the SOCKS server on behalf of the connected client. - SOCKS proxies can pivot via creating a route to an external server from NAT networks. - - the attack host starts the SSH client and requests the SSH server to allow it to send some TCP data over the ssh socket. - The SSH server responds with an acknowledgment, - the SSH client then starts listening on localhost:9050. - Whatever data you send here will be broadcasted to the entire network (172.16.5.0/23) over SSH.

Workflow:

Enable Dynamic port forwarding with SSH - ssh -N -D 9050 ubuntu@10.129.202.64 - -D - request the SSH server (ubuntu) to enable dynamic port forwarding - -N - no shell session is started

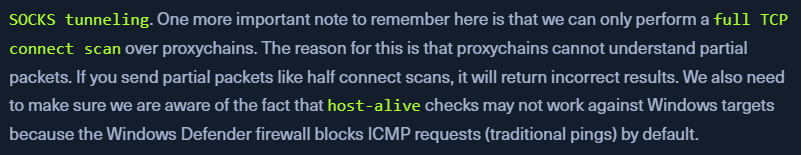

Route any packets over the port 9050 - using proxychains - hide the origin IP and only show pivots IP - Proxychains is often used to force an application's TCP traffic to go through hosted proxies like SOCKS4/SOCKS5, TOR, or HTTP/HTTPS proxies. - Modify the /etc/proxychains4.conf file to add socks4 127.0.0.1 9050 - Will tell proxychains to send all traffic to port 9050 - Commands - proxychains nmap -v -sn 172.16.5.1-200 - SOCKS tunneling - packs all NMap data using proxychains and forwards it to a remote server - - A full TCP connect scan without ping on an entire network range will take a long time.

Enum the Windows target through Proxychains

  • proxychains nmap -v -Pn -sT 172.16.5.19
  • EG: we have PORT 3389 open - RDP

Metasploit via Proxychains

  • proxychains msfconsole
  • msf6 > search rdp_scanner

xfreerdp with Proxychains

  • proxychains xfreerdp /v:172.16.5.19 /u:victor /p:pass@123

Local mhanje remote port aplya local port var yenar.
