Stack Based BOF 101

  • usually binary files (executables) from c/c++
  • Microsoft - Portable Executable Format (PE)
  • Unix - Executable and Linking Format (ELF)

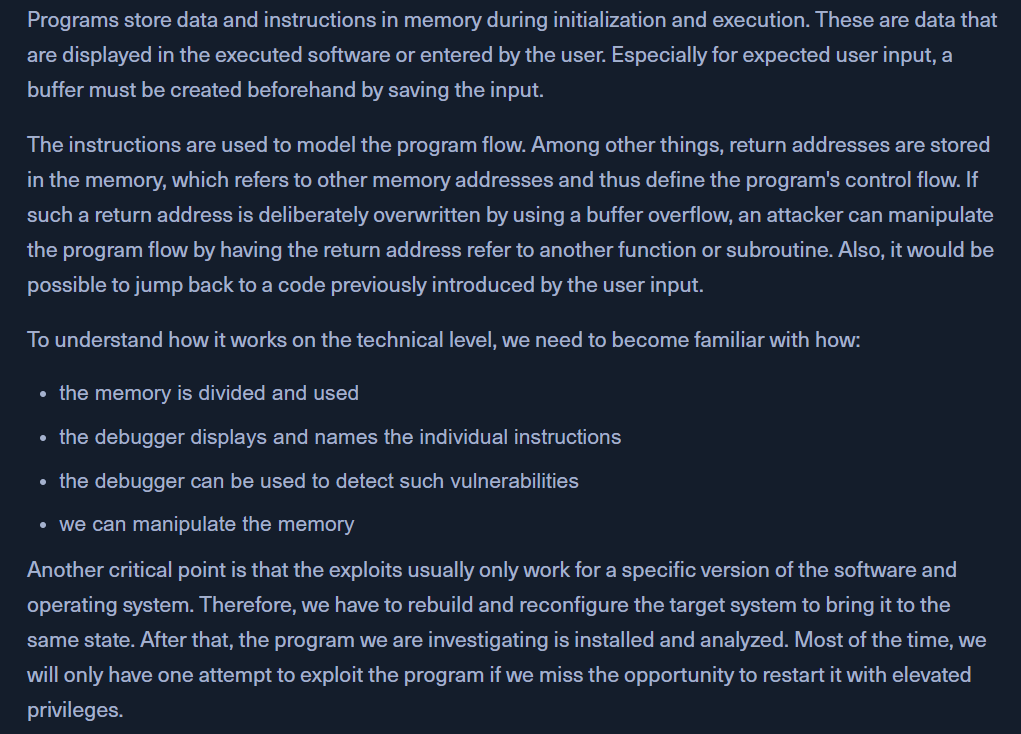

    • If the linker loads such an executable binary file and the program will be executed, the corresponding program code will be loaded into the main memory and then executed by the CPU.

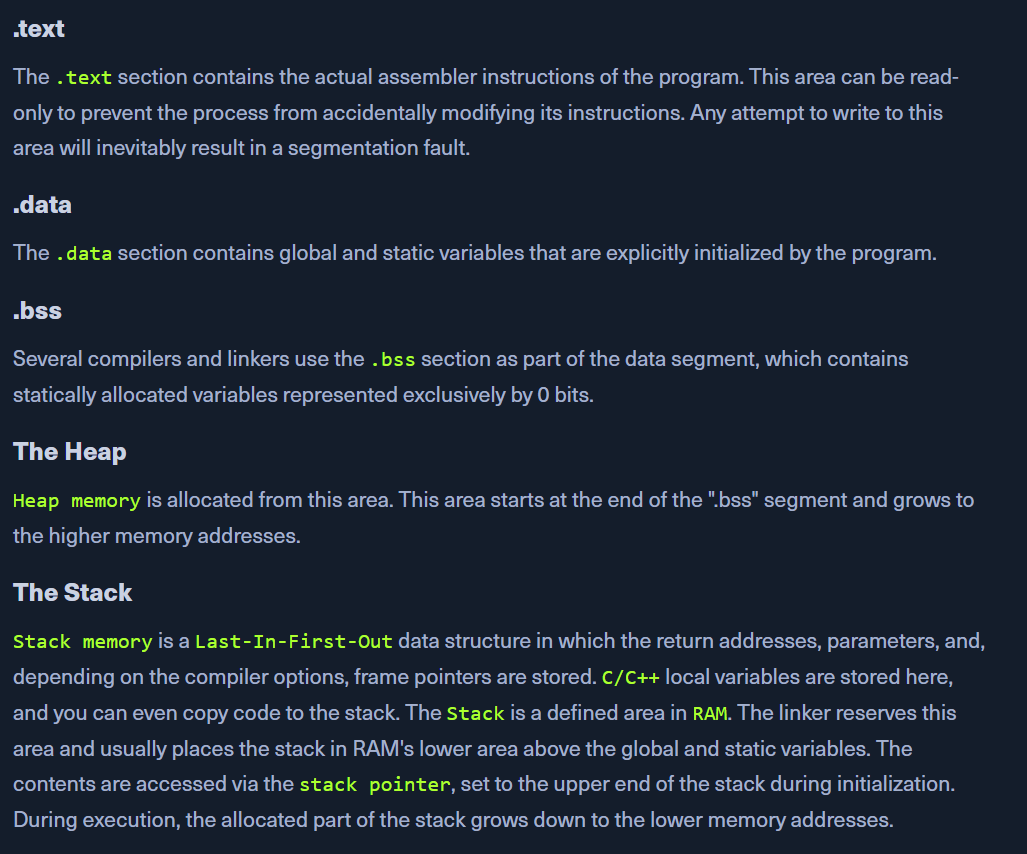

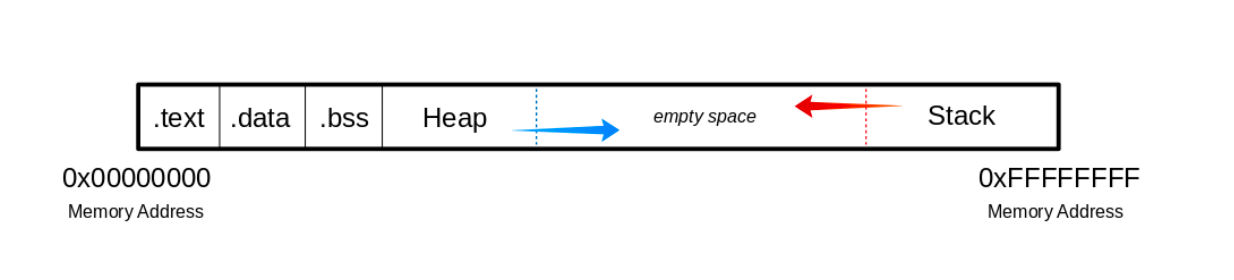

The Memory

  • https://www.exploit-db.com/exploits/46763 - freefloat ftp server windows xp

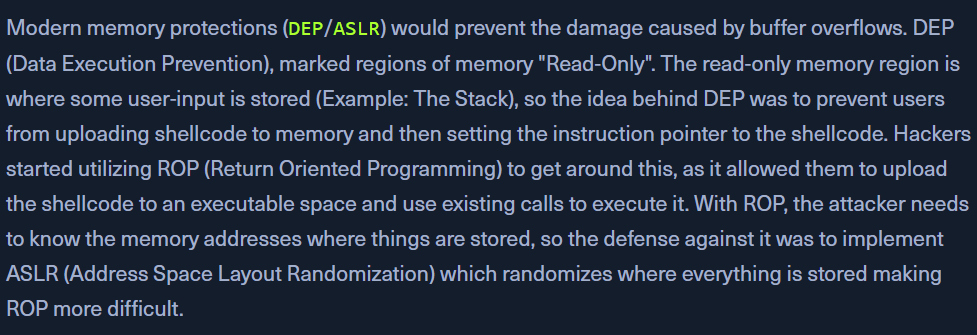

  • But, modern systems have DEP/ASLR to avoid buffer overflow vulnerabilities

Vulnerability

  • Vulnerable C functions:

    • strcpy
    • gets
    • sprintf
    • scanf
    • strcat

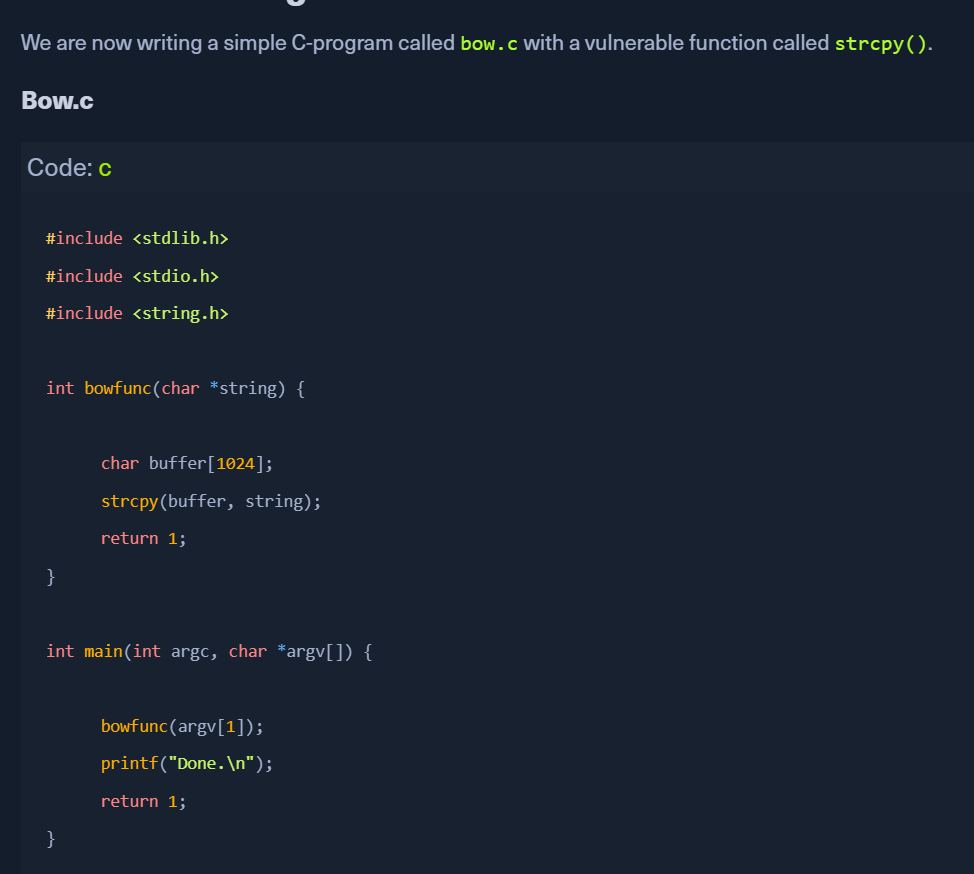

  • C code for strcpy()
  • for learning bof, diasable ASLR
    student@nix-bow:~$ sudo su
root@nix-bow:/home/student# echo 0 > /proc/sys/kernel/randomize_va_space
root@nix-bow:/home/student# cat /proc/sys/kernel/randomize_va_space

0
  • compile the above c code into a 32bit elf binary
    sudo apt install gcc-multilib
gcc bow.c -o bow32 -fno-stack-protector -z execstack -m32
file bow32 | tr "," "\n"

GDB

  • GNU Debugger (GDB) - to view the created binary on the assembler level
  • provides traceability with breakpoints, stack traces, intervene execution, manipulate variables. call functions independently.
  • Once we have executed the binary with GDB, we can disassemble the program's main function.

GDB AT&T syntax

  • gdb -q bow32
  • disassemble main
    Dump of assembler code for function main:
   0x00000582 <+0>:     lea    0x4(%esp),%ecx
   0x00000586 <+4>:     and    $0xfffffff0,%esp
   0x00000589 <+7>:     pushl  -0x4(%ecx)
   0x0000058c <+10>:    push   %ebp
   <SNIP>
   0x000005d2 <+80>:    ret
End of assembler dump.

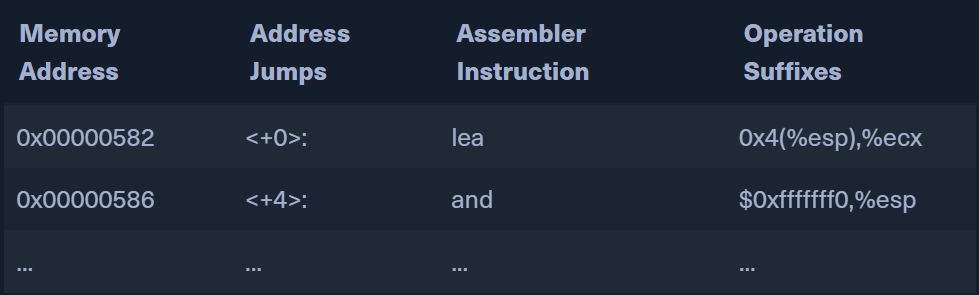

  • starting with the first column:
    • hexadecimal numbers - memory addresses
    • <+4> - address jumps in memory (bytes) based on the respective instruction
    • assembler instructions - (push, call)
    • operations suffixes and their registers (% $ - AT&T syntax)
  • instruction | source | destination

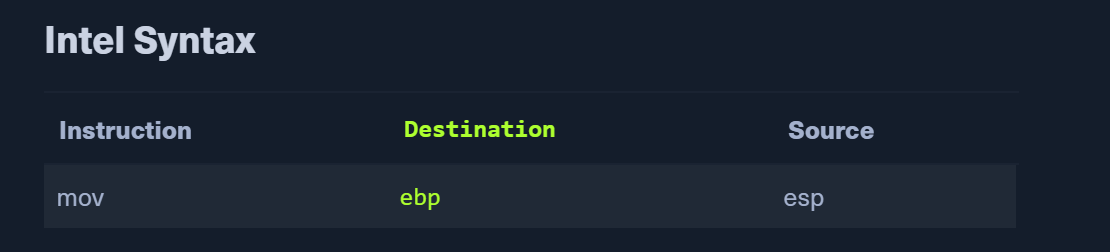

GDB INTEL syntax

  • easier to read
    • set to default
    • echo 'set disassembly-flavor intel' >> ~/.gdbinit
  • disas with intel syntax
  • set disassembly-flavor intel
  • disassemble main
    Dump of assembler code for function main:
   0x00000582 <+0>:     lea    ecx,[esp+0x4]
   0x00000586 <+4>:     and    esp,0xfffffff0
   0x00000589 <+7>:     push   DWORD PTR [ecx-0x4]
   0x0000058c <+10>:    push   ebp
   0x0000058d <+11>:    mov    ebp,esp
   0x0000058f <+13>:    push   ebx
   0x00000590 <+14>:    push   ecx
   0x00000591 <+15>:    call   0x450 <__x86.get_pc_thunk.bx>
   0x00000596 <+20>:    add    ebx,0x1a3e
   0x0000059c <+26>:    mov    eax,ecx
   0x0000059e <+28>:    mov    eax,DWORD PTR [eax+0x4]
<SNIP>
